Description

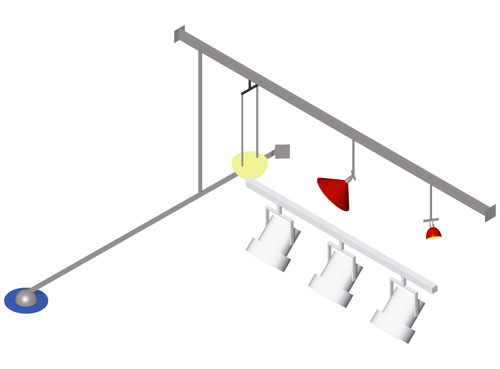

1) LV Track
– material for track
– length (including plates)
– height to plate
2) LV Track Light 1
– rotation around X
– materials for: fixture, shade, and lamp
– length of mounting pole
– resolution
– angles of inner light cone and outer light cone
– light falloff angle
– distance light stops
– light falloff distance
– shadow casting
– show light cone
3) LV Track Light 2
– materials for: top bracket, cable, lamp / shade, down-light lens, and down-light
– length of mounting cables
– center down-light on or off
– resolution
– angles of inner light cone and outer light cone
– light falloff angle
– distance light stops
– light falloff distance
– shadow casting
– show light cone
4) LV Track Light 3
– rotation around X
– materials for: fixture, shade, and lamp
– length of mounting pole
– resolution
– angles of inner light cone and outer light cone
– light falloff angle
– distance light stops
– light falloff distance
– shadow casting
– show light cone
5) LV Track Light 4
– rotation around X
– materials for: fixture, shade, and lamp
– length of mounting pole
– resolution
– angles of inner light cone and outer light cone
– light falloff angle
– distance light stops
– light falloff distance
– shadow casting
– show light cone
6) Track Lights
– projection below ceiling
– materials for fixture and lamp
– track length
– number of lights
– mounting height
– lamp angle
– contour pen
– angles of inner light cone and outer light cone
– light falloff angle
– distance light stops
– light falloff distance
– shadow casting
– show light cone
Compatibility: ArchiCad 6.5 and up
